Fusion

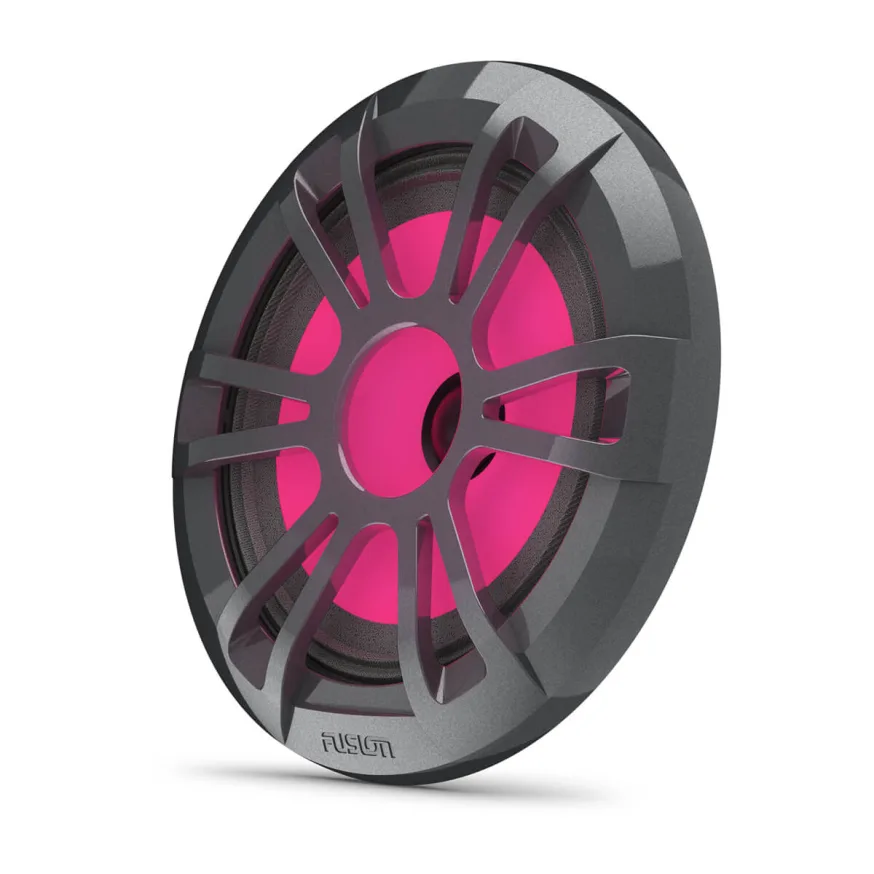

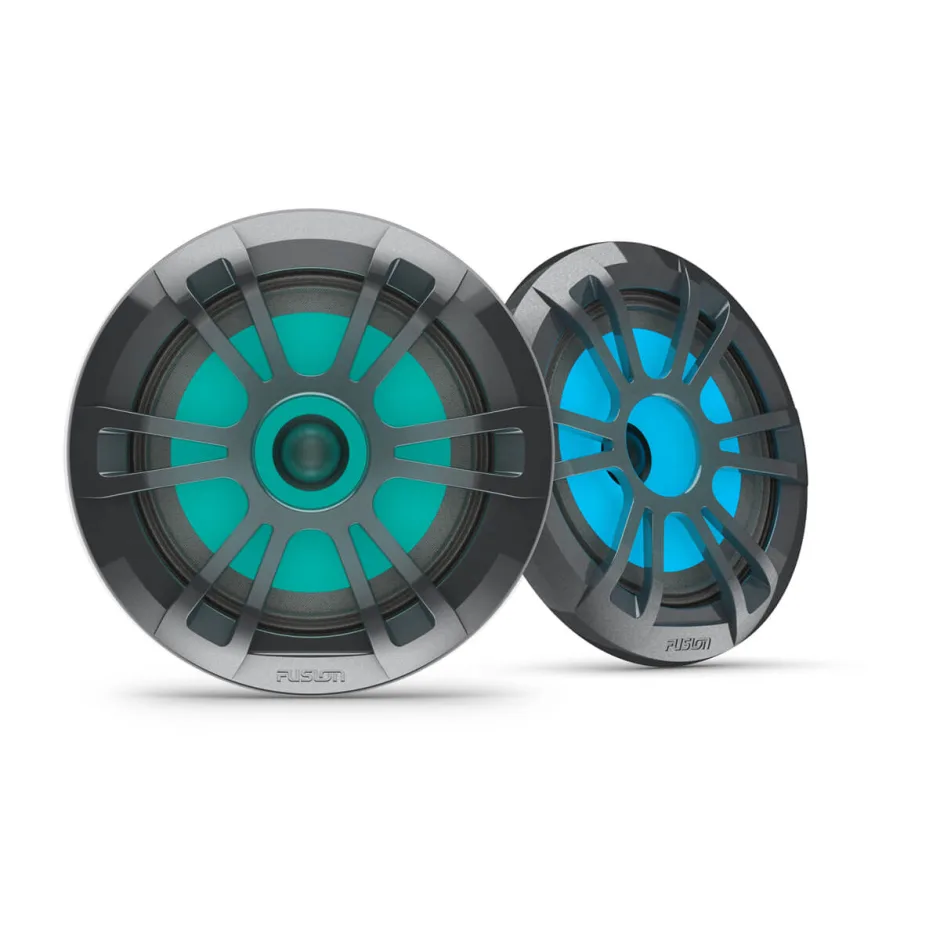

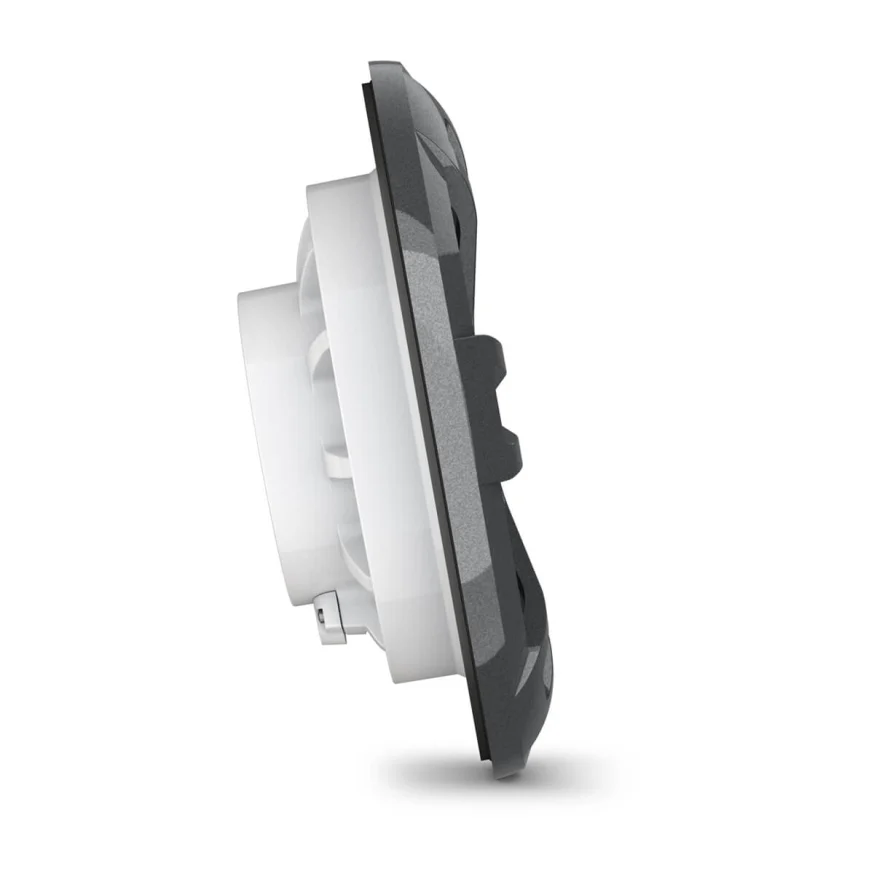

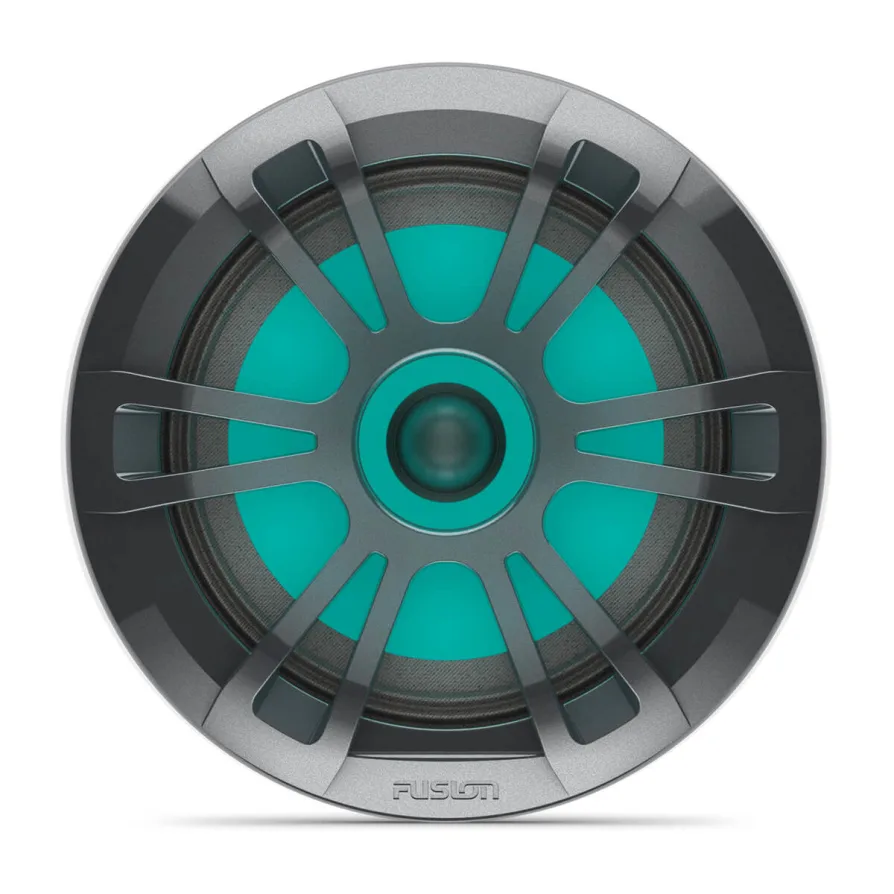

EL Series Marine Speakers

Enjoy quality audio and multicolor RGB LED lighting to enhance your boating experience with the EL Series Marine speakers from Fusion.

SKU: 010-02080-20 Category:

Specs

General
Physical dimensions (Diameter x Depth)Classic: 6.93” x 2.26” (176 x 57.5 mm)
Sports: 6.93” x 2.32” (176 x 59 mm)
WeightClassic: 1.21 lbs (0.55 kg)
Sports: 1.26 lbs (0.57 kg)
Water and dust ratingIP65
ConfigurationFull range
Speaker size6.5″
Peak power (Watts)80 W
RMS power (Watts)20 W
Sensitivity (1 W / 1 m)88 dB
Frequency response45 Hz-16 kHz
Nominal impedance4 ohms
Recommended amplifier power (RMS)20-40 W/Ch
LED lightingyes, RGB (sports gray with RGB model only)
LED supply voltage10.8-16 VDC (sports gray with RGB model only)
LED load current @ 16 VDC150 mA (sports gray with RGB model only)
Operating temperature range32° to 122° F (0° to 50° C)
Voice coil diameter0.79″
Cone materialPolypropylene cone with cloth surround
Compass-safe distance100″ (254 cm)
Mounting Dimensions
Mounting diameter clearance5.12″ (130 mm)
Mounting depth clearance1.69″ (43 mm)

Description

The EL Series Marine speakers boast an IP65 rating, safeguarding against dust and water ingress. Additionally, they undergo rigorous testing to ensure high-level protection against salt fog and UV exposure. For a broader range of Fusion products, explore here.
