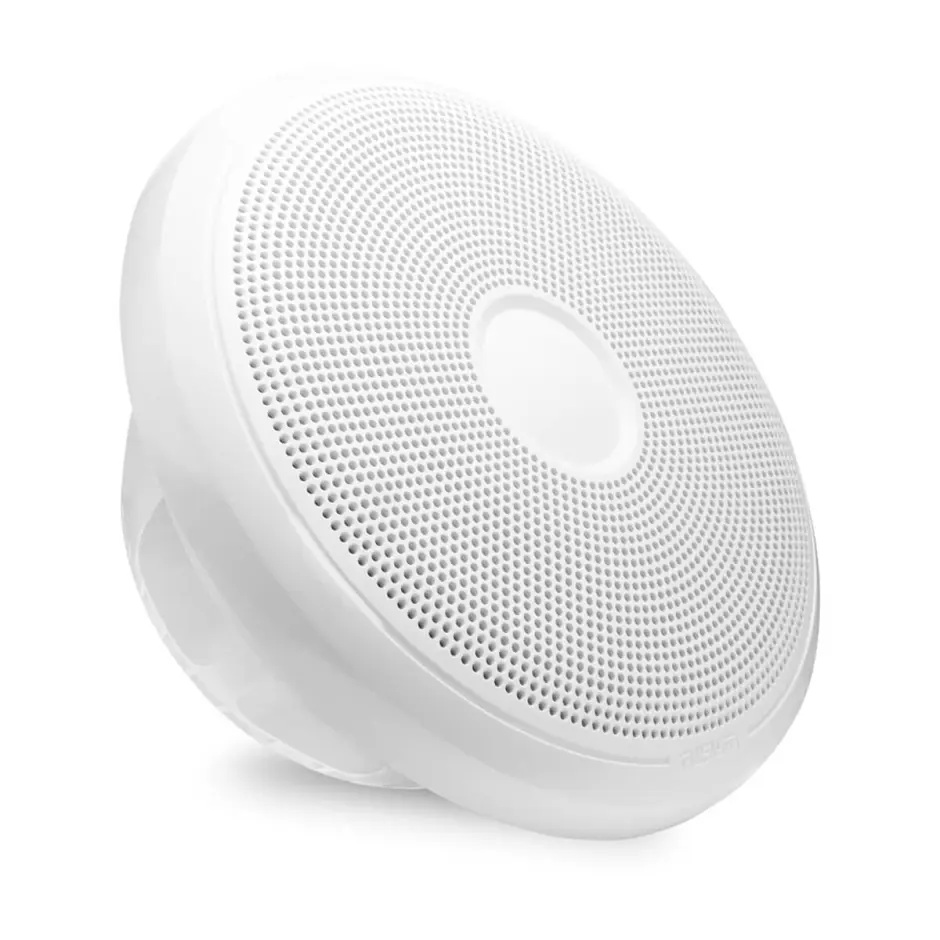

Fusion® XS Series Marine Subwoofers

Tested to international standards for pressure and water ingress, the XS Series Marine Subwoofers are designed and built for superior quality and robustness.

SKU: 010-02198-00 Category:


Physical dimensions
(Diameter x Depth)
Classic: 10.79″ x 5.59″ (274 x 142 mm)
Sports: 10.79″ x 5.79″ (274 x 147 mm)
Water and dust ratingIP65
Speaker size10″
Peak power (Watts)600 W
RMS power (Watts)120 W
Sensitivity (1 W / 1 m)87 dB
Magnetic structure41 oz
Frequency response30 Hz – 2 kHz
Nominal impedance4 ohms
Recommended amplifier power (RMS)40 – 300 W
LED lightingYes – RGB (XS-SL10SPGW only)
LED Supply Voltage10.8-16 VDC (XS-SL10SPGW only)
LED load current @ 14.4 VDC150 mA (XS-SL10SPGW only)
Operating temperature range32° to 122° F (0° to 50° C)
Voice coil diameter1.5″
Cone materialPolypropylene cone with rubber surround
Compass-safe distance146″ (370 cm)
Mounting Dimensions
Mounting diameter clearance8.78″ (223 mm)
Mounting depth clearance4.45″ (113 mm)
Optimum Enclosure Recommendations
Sealed enclosure volume11.4 cubic ft (40 L)


Enjoy high-performance low-end frequencies and multicolor RGB LED lighting1 with the XS Series Marine Subwoofers from Fusion — designed to add another dimension to your on-water audio entertainment experience at a midrange price point.

Built for system versatility and ease of integration, you can connect your XS Series subwoofer directly to a 2.1 audio zone compatible system, such as the Apollo Series, without the need for an external amplifier. This helps to reduce system cost and simplifies installation.
