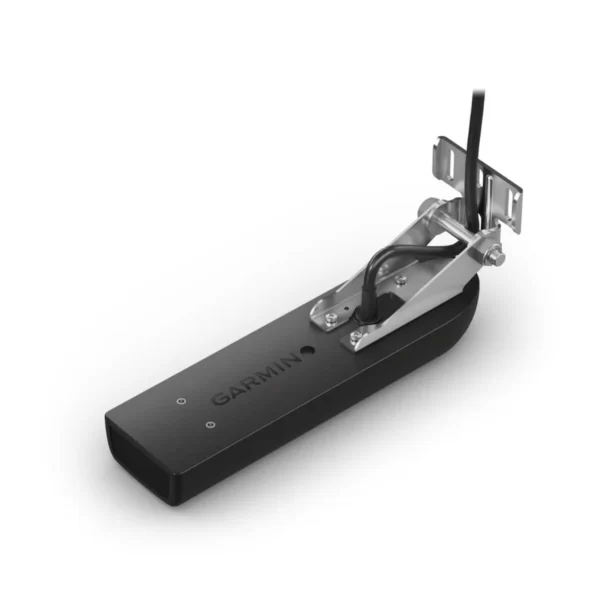

Garmin GT51M-TM – Plastic Transom Mount Traditional CHIRP

Garmin GT51M-TM – Plastic Transom Mount Traditional CHIRP 80-160kHz 600W /ClearVU/SideVü 500 W (CHIRP 260/455 kHz) 12-pin with 30ft Cable
SKU: 010-01966-00 Category:


Transducer frequencyCHIRP Mid-band (80-160 kHz); ClearVü/SideVü CHIRP 260 kHz (245-275 kHz) & 455 kHz (445-465 kHz)
Transducer powerCHIRP Traditional 600 W; ClearVü/SideVü 500 W
Transducer beamwidthTraditional: 24°-13°
ClearVü/SideVü: 2.0°x51° @ 260 kHz and 1.4°x29° @ 455 kHz
Transducer maximum depthTraditional: 1,800 ft.; ClearVü: 1,000 ft.; SideVü: 750 ft.
Transducer cable length30 ft.
Transducer depth/speed/temperatureDepth and Temperature
Transducer number of pins12-pin
Transducer supported deadrise/transom angles0°-70° degree transom


Perfect for the coastal and offshore fisherman who want CHIRP traditional sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar, this transom mounted transducer consistently displays clear and crisp fish arches with superior target separation as well as clear pictures of objects, structure and fish that pass below and to each side of your boat and is optimized for rough sea conditions.

The CHIRP ClearVü/SideVü elements have a power rating of 500 W per element and operating frequencies of 260/455 kHz. The traditional CHIRP sonar has a power rating of 600 W and operating frequencies of mid-band CHIRP 80-160 kHz. It also includes a built-in fast response temperature sensor.

GT51M-TM includes a 12-pin transducer with mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat. For more Garmin product just click Here
