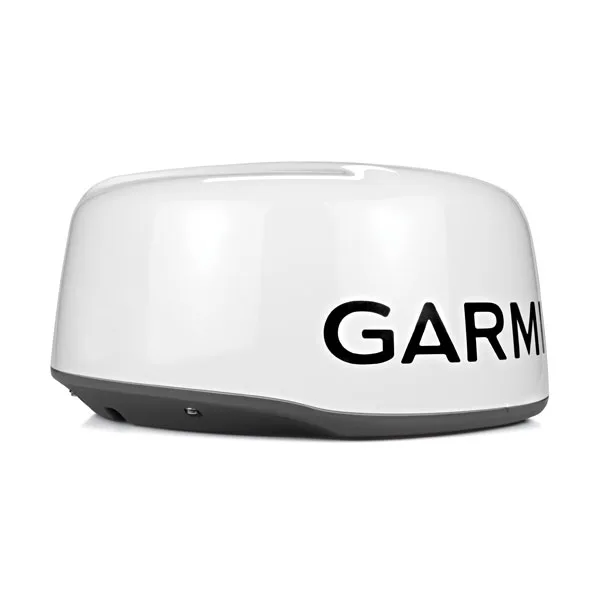

GMR 18HD+ Radome Marine Radar 4KW (36nM)

Key Features

• Compact: Streamlined 18″ 4kW dome radar can easily be mounted on a radar arch or up a mast
• 8-bit true color resolution for a clear presentation on your chartplotter screen
• Powerful: Delivers 4kW transmit power and clear echo definition at all ranges to enhance situational awareness
• Automatic: Dynamic Auto Gain automatically adjusts to your surroundings for optimal performance in all conditions
• Adaptive: Dynamic Sea Filter automatically adjusts gain to changing sea conditions
• Intuitive: Overlays radar image on the chartplotter map page (autopilot or heading sensor recommended for best results)
• Vigilant: Provides MARPA target tracking when combined with a multi-function display and heading sensor (sold separately)

Specifications

• Transmit Power: 4kW
• Maximum Range: 36nm
• Minimum Range: 65.6′ (20m)
• Horizontal Beamwidth: 5.2°
• Rotation Speed: 24rpm
• Power Consumption: 3W standby; 18.1-24.4W transmit
• Voltage: 11-35V DC
• Dimensions: 20″dia. x 9 7/8″H
• Weight: 17lb.
• Waterproof Rating: IPX7
• Warranty: Two years

What’s in the Box

• GMR 18 HD+ radome
• Mounting hardware kit
• Power cable (15 m/49.21′)
• Network cable (15 m/49.21′)
• Installation instructions
• Mounting template
