Garmin GT20-TM 4-pin Connector

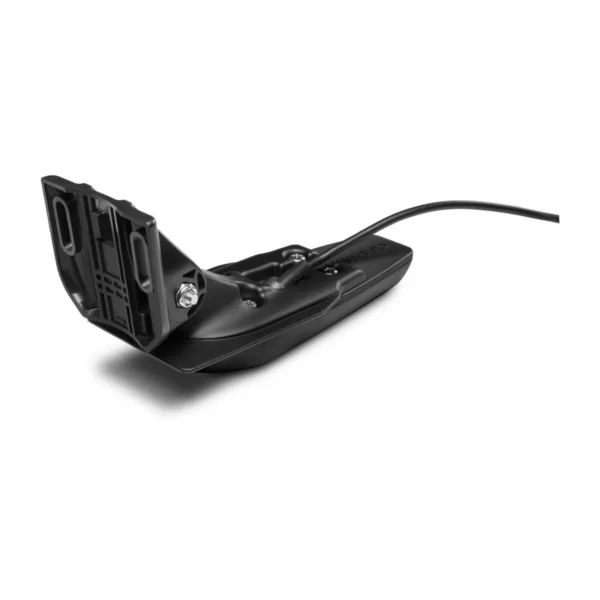

Garmin GT20-TM – Transom Mount Traditional 77/200kHz 500 W / ClearVU 500W Transducer with Temp (4-pin) with 20ft Cable

SKU: 010-01960-00 Category:

Specs

General

TRANSDUCER FREQUENCYTraditional 77/200; ClearVü CHIRP 455 kHz (435-475 kHz) & 800kHz (800-840 kHz)
TRANSDUCER POWERTraditional 500 W; ClearVü 500 W
TRANSDUCER BEAMWIDTHTraditional: 45°/15°
ClearVü: 2.5°x53°@ 455 kHz and 1.6°x29° @ 800 kHz
TRANSDUCER MAXIMUM DEPTHTraditional: 1,900 ft.; ClearVü: 750 ft.
TRANSDUCER CABLE LENGTH20 ft.
TRANSDUCER DEPTH/SPEED/TEMPERATUREDepth and Temperature
TRANSDUCER NUMBER OF PINS4-pin
TRANSDUCER SUPPORTED DEADRISE/TRANSOM ANGLES0°-70° degree transom

Description

Perfect for the shallow water fisherman who want traditional and CHIRP ClearVü scanning sonar, this transom or trolling motor mounted transducer consistently displays fish arches as well as clear pictures of objects, structure and fish that pass below your boat.

The 20 ft Garmin GT20-TM cable with built-in fast response temperature sensor has a power rating of 500 W; a depth of 1,900 ft (traditional) and 750 ft (ClearVü); an operating frequency of 77/200 kHz (traditional) and 455 kHz (ClearVü); and a 0 to 70 transom angle.

Garmin GT20-TM comes with transom and trolling motor mounts, and installation instructions. Follow the instructions carefully to avoid damaging your boat. For more Garmin products just click Here
