Garmin

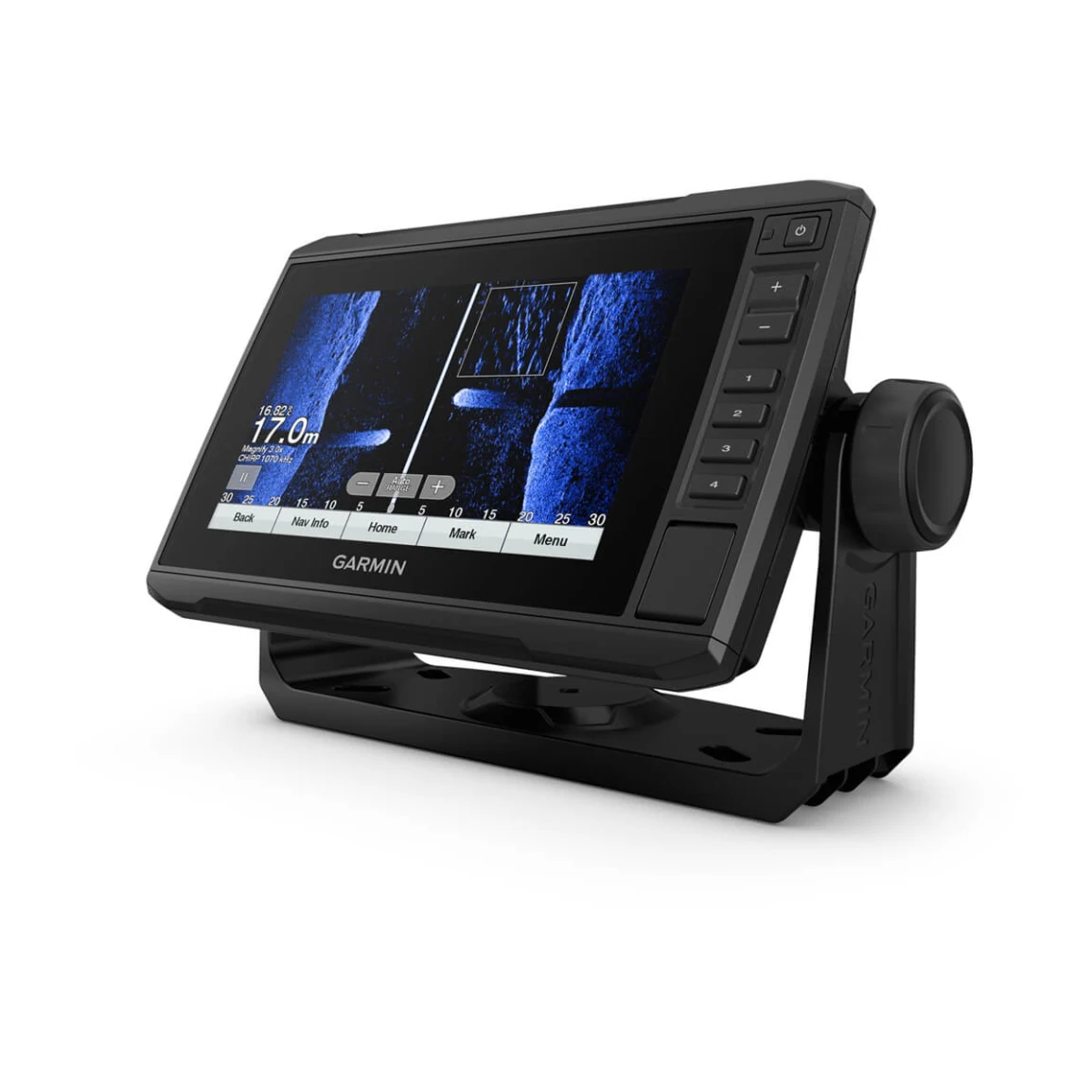

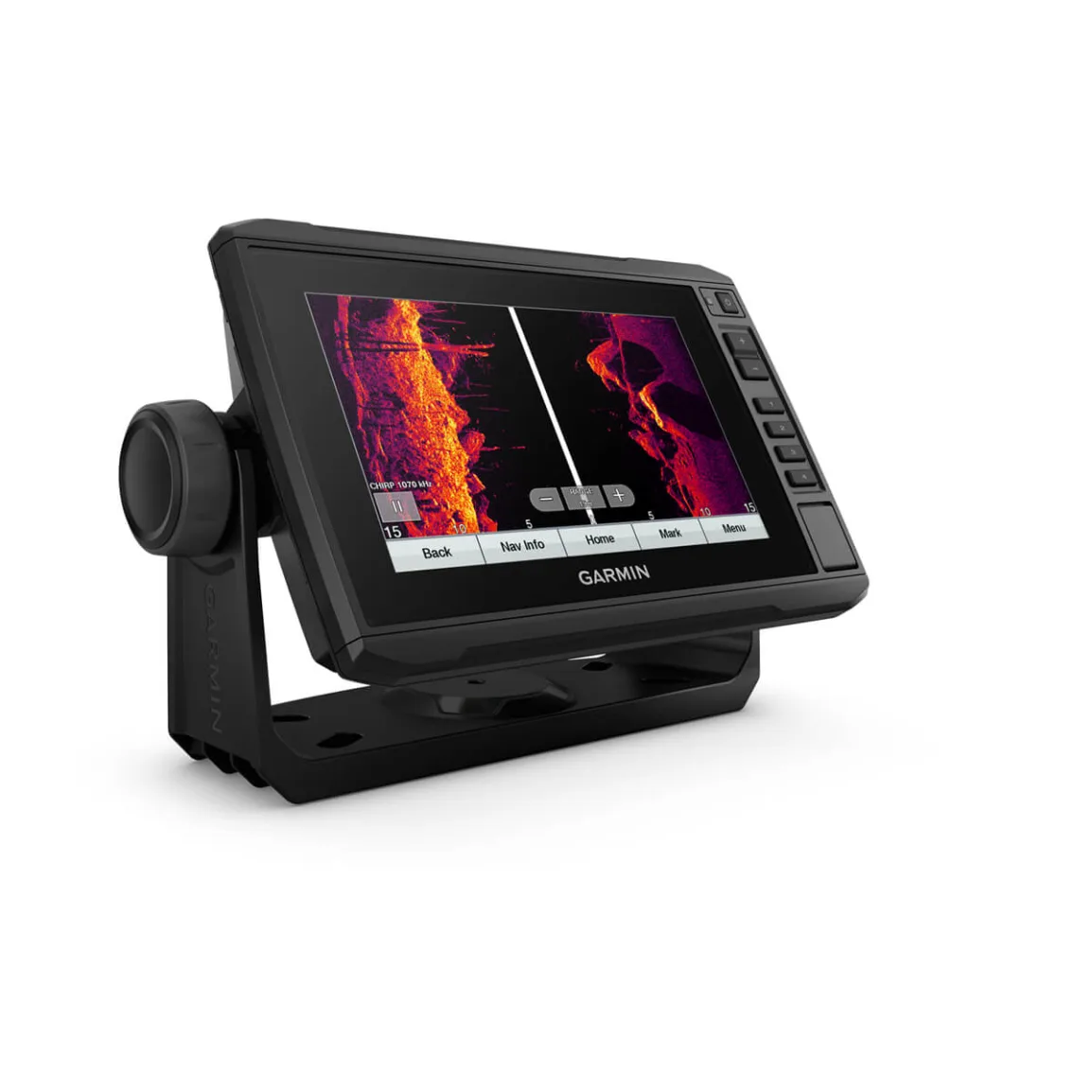

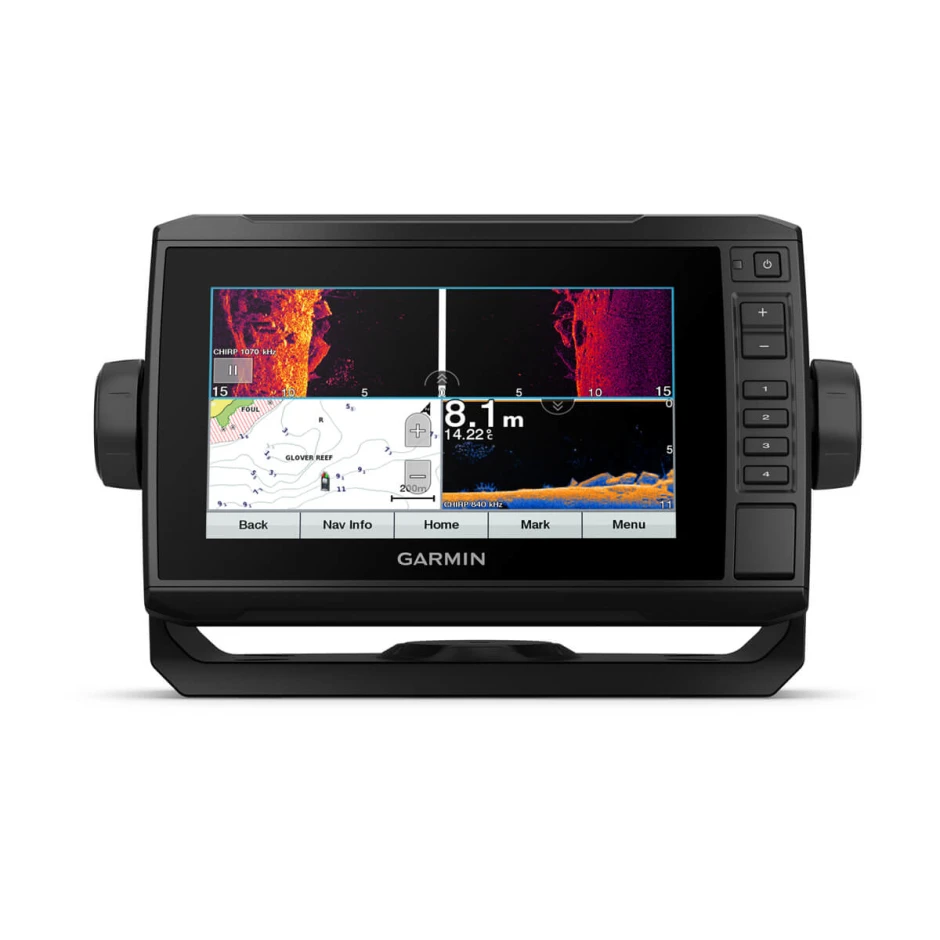

ECHOMAP™ UHD 72sv GT56UHD-TM

ECHOMAP 72sv UHD With worldwide basemap and GT56UHD-TM transducer

SKU: 010-02518-01 Category:

Specs

General
DIMENSION25 x 13.9 x 5.1 cm
WEIGHT0.77 kg
WATERPROOFIPX7
TOUCHSCREENYes
DISPLAY TYPEWVGA display
DISPLAY SIZE15.5 x 8.6 cm; 17.8 cm (7.0″) diagonal
DISPLAY RESOLUTION400 x 800 pixels
MOUNTING OPTIONSBail or flush
INPUTTouchscreen with Keyed Assist
Maps & memory
ACCEPTS DATA CARDS1 microSD card; 32 GB maximum size
WAYPOINTS5,000
TRACK POINTS50,000
TRACKS50 saved tracks
NAVIGATION ROUTES100
Sensors
GPSYes
HAS BUILT-IN RECEIVERYes
RECEIVER5 Hz
NMEA 2000® COMPATIBLEYes
NMEA 0183 COMPATIBLEYes
SUPPORTS WAASYes
Built-in maps
TIDE TABLESYes
Optional map support
BLUECHART G3Yes
BLUECHART G3 VISIONYes
LAKEVÜ G3Yes
LAKEVÜ G3 ULTRAYes
GARMIN NAVIONICS+Yes
GARMIN NAVIONICS VISION+Yes
STANDARD MAPPINGYes
GARMIN QUICKDRAW CONTOURSYes
Chartplotter features
AISYes
DSCYes
SUPPORTS FUSION-LINK COMPATIBLE RADIOSYes
ACTIVECAPTAIN MOBILE PLANNING COMPATIBLEYes
WIRELESS REMOTE COMPATIBLEYes
SAILING FEATURESYes
Electrical features
POWER INPUT9 to 18 Vdc
TYPICAL CURRENT DRAW AT 12 VDC0.8 A
MAXIMUM CURRENT DRAW AT 12 VDC1.25 A
MAXIMUM POWER USAGE AT 10 VDC15W
Sonar features & specifications
DISPLAYS SONARYes
POWER OUTPUT500 W
TRADITIONAL SONAR (DUAL FREQUENCY/BEAM)built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
CLEARVÜBuilt-in 260/455/800/1000/1200 kHz
SIDEVÜBuilt-in 260/455/800/1000/1200 kHz
PANOPTIX SONARYes
LIVESCOPEYes

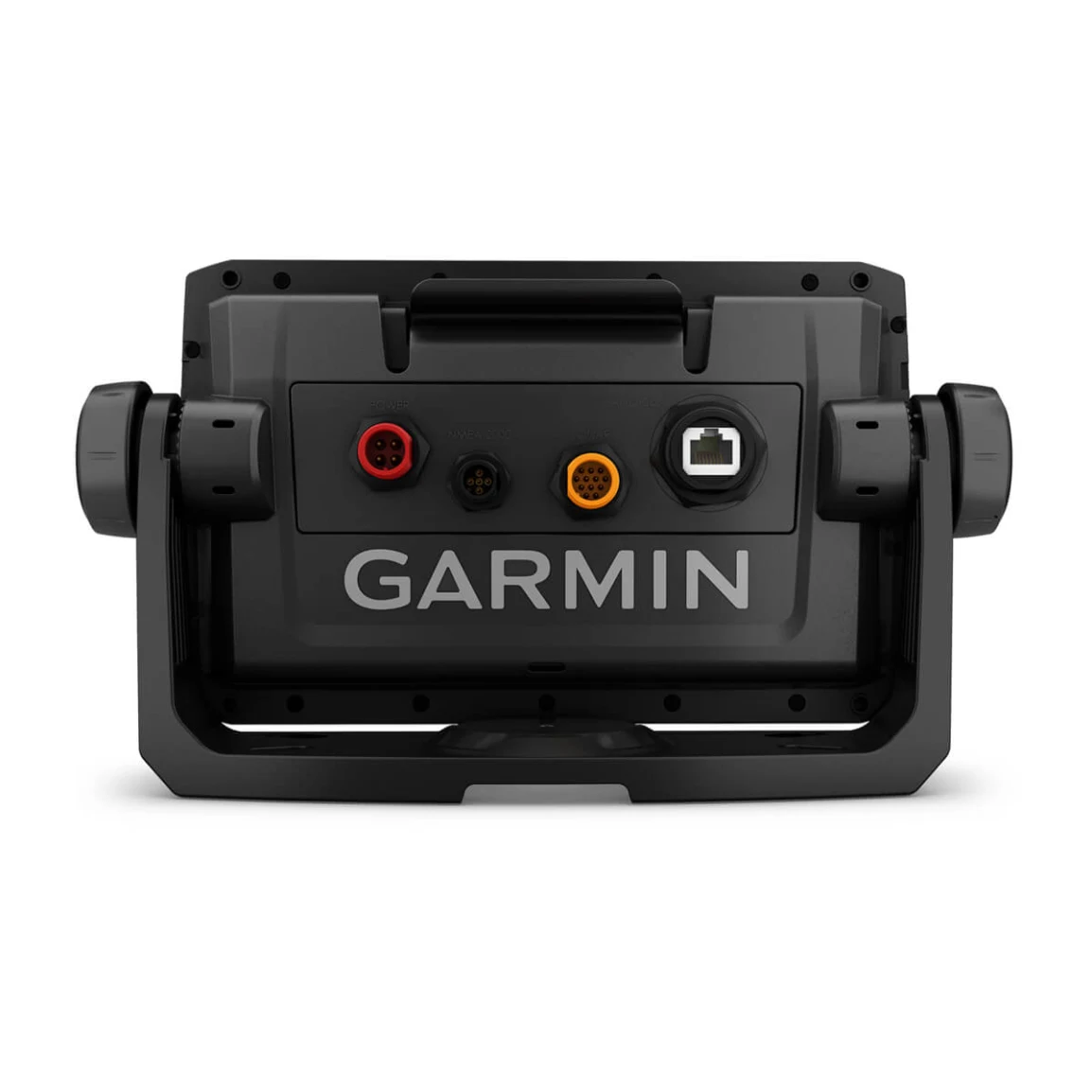

Connections
NMEA 2000® PORTS1
CONNECTIONS NMEA0183 INPUT PORTS1
NMEA 0183 OUTPUT (TX) PORTS1
VIDEO INPUT PORTSNone
VIDEO OUTPUT PORTSNone
GARMIN MARINE NETWORK PORTS1 Panoptix port



Description

The GT56 transducer Echomap is specifically designed for Garmin CHIRP traditional sonar and Ultra High-Definition ClearVu and SideVu scanning sonars.

With three scanning sonar frequencies and 20% greater range for the UHD SideVu sonar, you’ll get top performance at all depths.

This chartplotter supports the Panoptix LiveScope scanning sonar system, which lets you see all around your boat in real time.

High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

Create personalized fishing maps on-screen with 1′ contours using the Quickdraw feature. Keep the data to yourself, or share it with the Quickdraw Community on the Garmin Connect app.

If you have multiple compatible EchoMap UHD or EchoMap Ultra devices on your boat, the 7″ and 9″ models can share information — such as sonar, user data and charts — with them.
