Marinco Wiper Motor 1000 Series – 12V – 2.5″ Shaft – 80

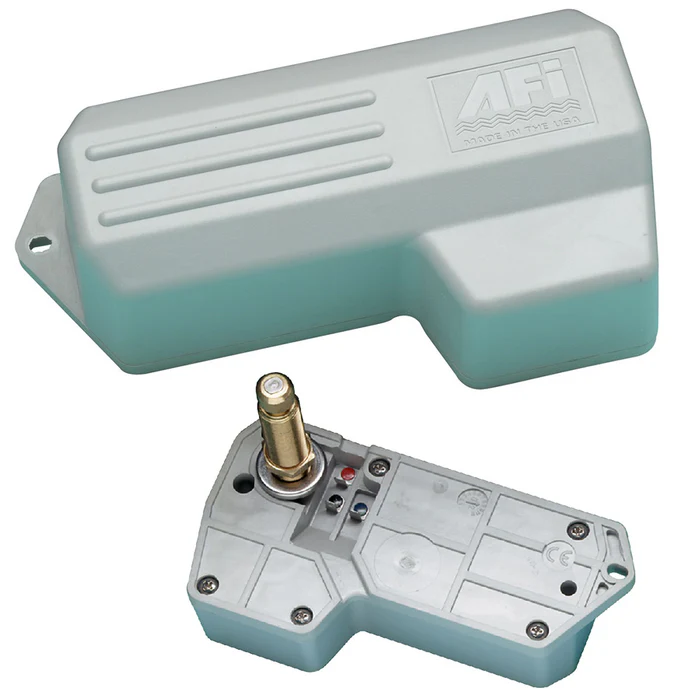

Wiper Motor 1000 Series – 12V – 2.5″ Shaft – 80°

The 1000 Waterproof Wiper Motor has a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic. It powers 18″ Deluxe arm and 18″ Deluxe blade combination at sweep sets of 80 degree or less or 16″ Deluxe arm and 16″ Deluxe blade combinations at a sweep set of 110 degree.

- +
SKU: 37180 Category: Tag:
Features:
  • Factory pre-set sweep of 80 degree or 110 degree adjustable to 50 degree, 65 degree, 80 degree or 110 degree
  • 0.625″ diameter shaft (16 mm)
  • 12 volt heavy-duty motor with anti-rotation drive shaft
  • Knurled drive shaft and solid brass arm drive nut
  • Coast to park with adjustable right or left self parking
  • Retail version includes 5 amp fuse and holder (on/off switch not included)
  • RF shielded circuitry
  • Weight: 1.75 lbs
  • Available in two shaft lengths: 1.5″ and 2.5″ (includes .5″ length of knurled arm fitting)
  • Measures approximately 6.625″ L 3.375″W 2″ D
  • Stall torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)
  • Stall current: 9.8-10.0 amps
  • No load current: 0.8-1.2 amps+
VIEW MORE MARINE ELECTRICAL PRODUCTS
ABOUT THIS PRODUCT
Lens Material UV resistant enhanced impact acrylic
Cap Material White plastic, chrome plated plastic, polished 316 stainless steel
Colour Temperature 2700K Warm White
Operating Voltage Multivolt for optimum brightness in 12 and 24 volt systems
Power Consumption 0.5W ( < 0.04A@12V / < 0.02A@24V )
Degree of Protection IP67 (Completely Sealed)
Weight Stainless Cap – 30g (including cable). Plastic Cap – 15g (including cable)

HellaMarine Lamp Dimensions

HellaMarine Lamp Instructions
