Prop Shaft Anode

Prop Shaft Anode – Made to fit tightly around the entire propeller shaft. Prevents screws from falling out during installation. Streamlined football shape minimizes turbulence and drag.
- +

Prop Shaft Anode – Streamlined shaft collars provide cathodic guard for propeller shafts with Mil Spec anode for a tight fit to the shaft.

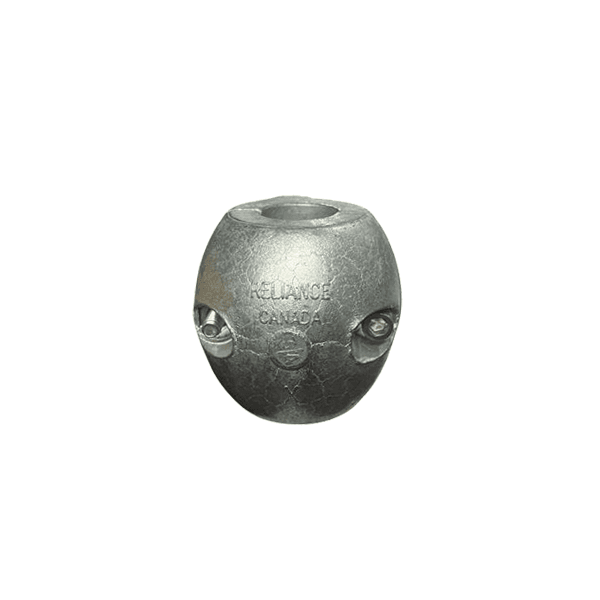

These zinc prop shaft anodes are high quality pressure die-cast and provide effective and inexpensive protection for your boat in salt and brackish water. Two stainless steel slot-head screws with lock washer and hex nut are used to lock the anode halves around the shaft. The stainless steel hex nut is pressed into the anode body.

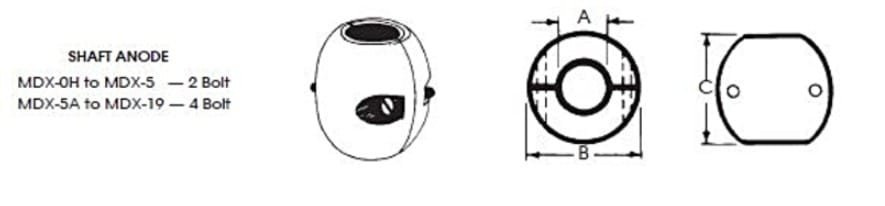

Type Number A – Shaft B – Diameter C – Length
MDX-1 3/4″ (19mm) 2-1/8″ (54mm) 2-1/8″ (54mm)
MDX-2 7/8″ (22mm) 2-1/8″ (54mm) 2-1/8″ (54mm)
MDX-3 1-0″ (25mm) 2-1/8″ (54mm) 2-1/8″ (54mm)
MDX-4 1-1/8″ (29mm) 2-1/8″ (54mm) 2-1/2″ (64mm)
MDX-5 1-1/4″ (32mm) 2-3/8″ (60mm) 2-1/2″ (64mm)
MDX-6 1-3/8″ (35mm) 2-1/2″ (64mm) 2-1/2″ (64mm)
MDX-7 1-1/2″ (38mm) 2-1/2″ (64mm) 2-1/2″ (64mm)
MDX-8 1-3/4″ (44mm) 3-1/4″ (83mm) 2-7/8″ (73mm)
MDX-9 2″ (51mm) 3-1/4″ (83mm) 2-7/8″ (73mm)
MDX-10 2-1/4″ (57mm) 4-1/4″ (105mm) 3-3/4″ (95mm)
MDX-11 2-1/2″ (64mm) 4-1/4″ (105mm) 3-3/4″ (95mm)
MDX-12 2-3/4″ (70mm) 4-3/4″ (121mm) 3-5/8″ (92mm)
MDX-13 3″ (76mm) 4-3/4″ (121mm) 3-5/8″ (92mm)

Prop Shaft Anode mdx
