| General | |
| DIMENSION | 6.18″ x 2.68″ x 4.06″ (156 x 68 x 103.2 mm) |
| WEIGHT | 0.7 lbs (316 g) |
| WATER RATING | IPX6 and IPX7 (front panel only, when properly installed) |
| DISPLAY | 2.3″ perimeter bonded monochrome LCD |
| OPERATING TEMPERATURE | 32° to 122° F (0° to 50° C) |
| CURRENT (MAX) | 15 A |
| Networking | |
| BLUETOOTH® WIRELESS RANGE | up to 30 ft |
| ANT® WIRELESS RANGE | Up to 10 ft |
| WIRELESS FREQUENCIES/PROTOCOLS | BLUETOOTH®: 2.4 GHz @ +12 dBm nominal ANT®: 2.4 GHz @ +7 dBm nominal |
| Audio | |
| AMPLIFIER | Class-D (4 ohm) |
| Electrical Features | |
| POWER INPUT | 10.8 – 16 VDC |
| COMPASS-SAFE DISTANCE | 5.9″ (150 mm) |
| Stereo Features | |
| PEAK POWER | 180 watts |
| RATED POWER OUTPUT (4 OHM) | 22 watts RMS x 4 @ 14.4 V input < 10% THD |
| FUSION-LINK™ CONTROL | yes (smart device and Garmin watch) |
| MULTI-ZONE™ TECHNOLOGY | 2 zones |
| BLUETOOTH® WIRELESS TECHNOLOGY | Yes Yes |
| ANT® WIRELESS TECHNOLOGY | Yes |
| DAB+ READY | |
| MULTI-LANGUAGE INTERFACE | Dutch, English, French, German, Italian, Spanish |
| SOFTWARE UPDATES | Over-the-air updates via Fusion-Link™ app |
| Sources | |
| SUPPORTED SOURCES | AM, FM, BLUETOOTH®, AUX x1 |
| DAB+ (available in Europe and Australia only) | |
| Connections | |
| AUXILIARY INPUTS (RCA) | 1 |
| AM/FM PORTS (MOTOROLA ANTENNA CONNECTOR) | 1 |
| SPEAKER CONNECTIONS | 4 (2 zone amplified) |
| RCA PRE-OUT (LEFT, RIGHT AND SUBWOOFER) | 1 zone (requires external amplification) |
| LINE OUT | Zone 1 (L + R, requires external amplification) |
| SUBWOOFER OUT | Zone 1 (mono output, requires external amplification) |

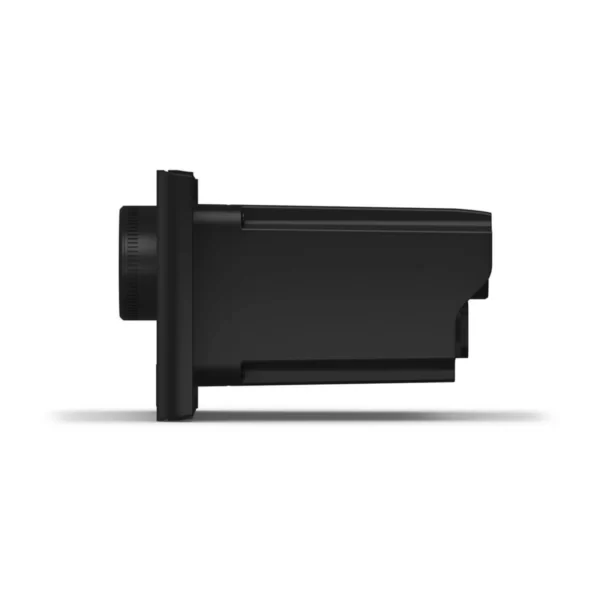

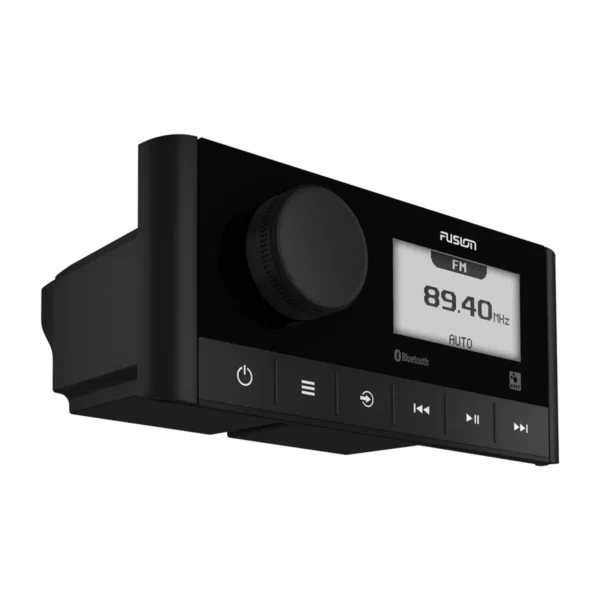

MS-RA60 True Marine Receiver / Media Player
The MS-RA60 is the most economical marine stereo from Fusion yet, featuring modern aesthetics, Multi-Zone™ Technology in two zones and advanced connectivity options in a compact form factor.
Specs
Description
Marine Receiver Modern, Compact And Economical
MS -RA60 Bonded LCD improves durability and protection against condensation and fogging. It also has a built-in Class-D amplifier delivers higher efficiency and greater output
Enjoy convenient over the air software updates via BLUETOOTH@ technology from the fusion Audio app. Multi-Zone Technology gives you control of two separate audio zones
