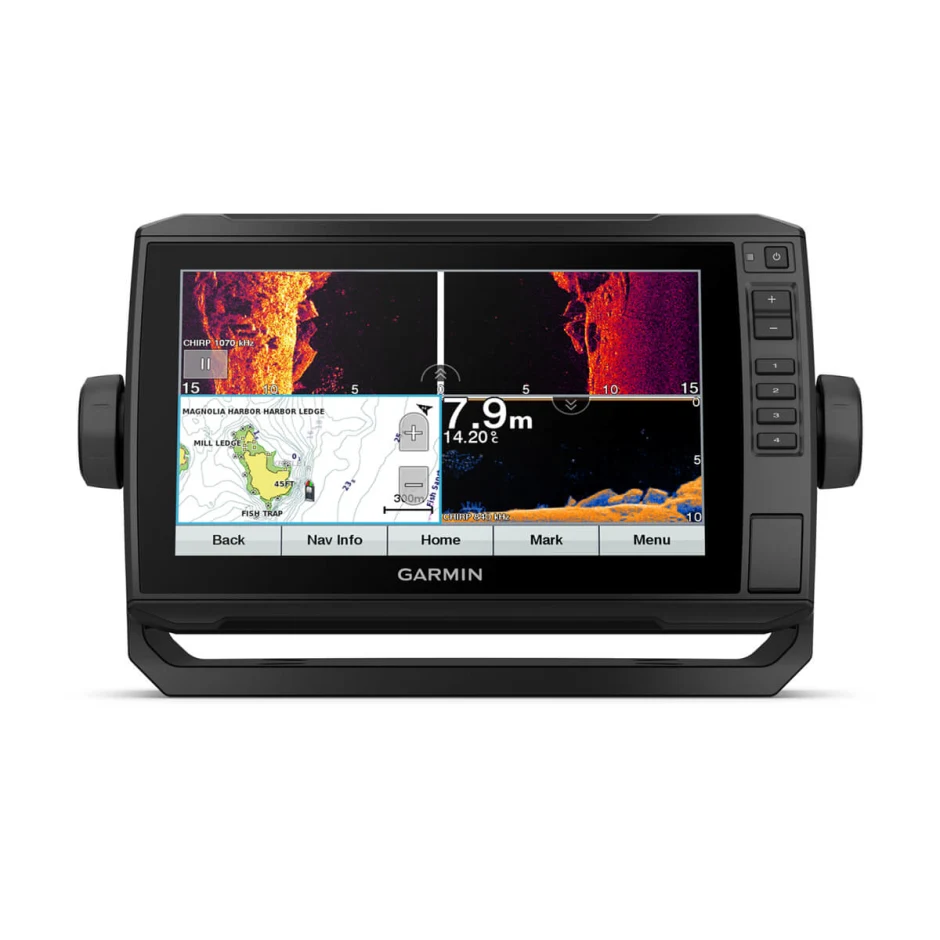

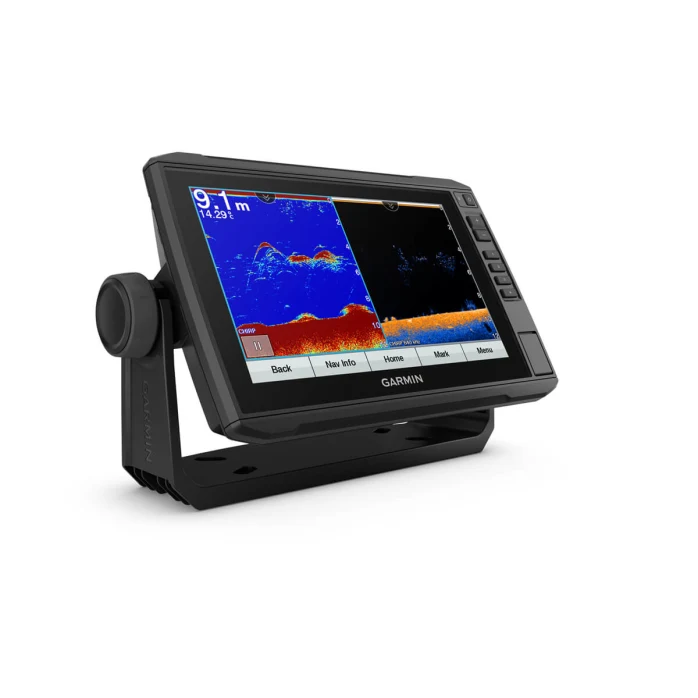

ECHOMAP™ UHD 92sv 010-02522-01

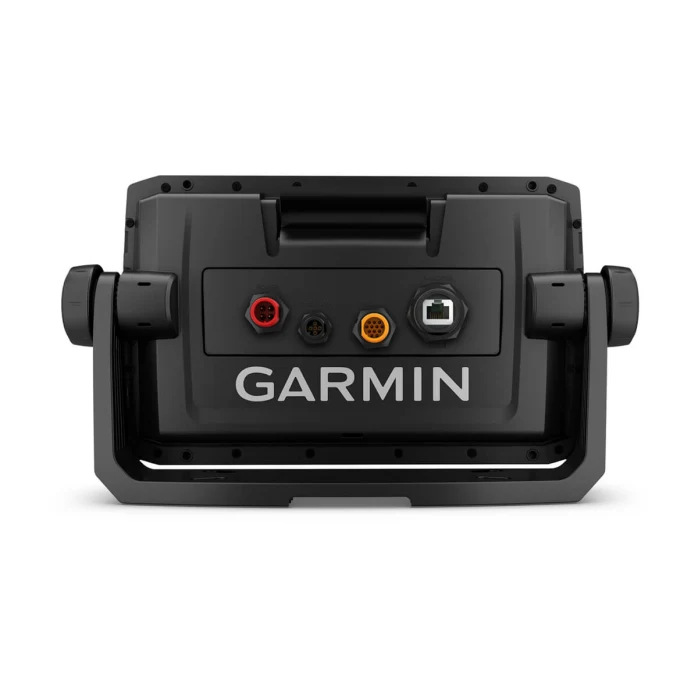

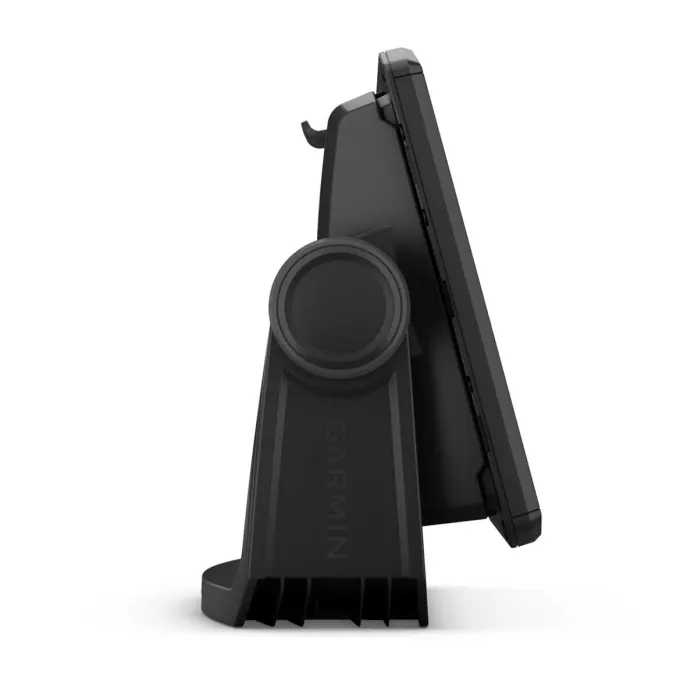

ECHOMAP UHD 92sv with worldwide basemap and GT56UHD-TM transducer has Quick-release bail mount for fast and easy mobility


Availability: Only 1 left in stock

SKU: 010-02522-01 Category:


Dimensions (W x H x D)28.2 x 16.4 x 6.0 cm (11.4 x 6.5 x 2.4 in.)
Dimensions in bail mount (W x H x D)30.3 x 18.0 x 9.8 cm (11.4 x 6.5 x 3.9 in.)
Display size (W x H)19.9 x 11.3 cm (7.8 x 4.8 in.)
22.9 cm (9 in.) diagonal
Clearance to nearest obstruction11.5 cm (4.5 in.)
Weight1 kg (2.3 lb.)
Max. power draw at 10 Vdc18 W
Typical current draw at 12 Vdc (RMS)1 A
Max. current draw at 12 Vdc (RMS)1.5 A
Wireless frequency and transmit power2.4 GHz @ 18.5 dBm maximum
MaterialPolycarbonate plastic
Water ratingIEC 60529 IPX71
Temperature rangeFrom -15° to 55°C (from 5° to 131°F)
Input voltageFrom 9 to 18 Vdc
Fuse3 A, 125 V fast-acting
Compass-safe distance65 cm (25.6 in.)
NMEA 2000® LEN @ 9 Vdc21
NMEA 2000 draw375 mA max.
Memory card1 microSD® card slot; 32 GB max. card size



ECHOMAP UHD2 92SV touchscreen chartplotter/sonar combos with keyed assist include or support transducers for Ultra High Definition ClearVü and SideVü scanning sonar plus Garmin CHIRP traditional sonar. They’re also compatible with LiveScope™ live scanning sonar, as well as Garmin Navionics+™ and premium
Garmin Navionics Vision+™ cartography.
