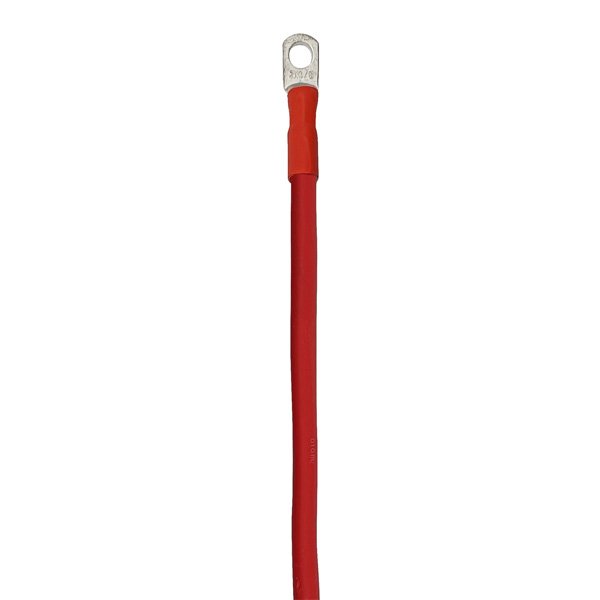

Tinned Battery Lead – Red
Pre-made tinned battery lead, marine-grade, high amp single core cables ideal for battery, starter, and winch motors. Durable and reliable performance.
Pre-made tinned battery lead marine-quality, single-core, high-amp, low-voltage cables are commonly used in battery, starter, winch motor, and other high-current applications. They are available in three lengths to meet common requirements.
Features
- Marine quality for durability on the water.
- Single core high amp, low voltage cables commonly used in battery, starter, winch motor and other high current applications
- Available in 3 lengths to meet your needs, and 2 colours for wire management
| CODE | DESCRIPTION Tinned Battery Lead |
NEAR SIZE (B&S) AWG |
NOMINAL AREA MM2 |
RATING 630°C AMP |
INSULATION THICKNESS MM |
STRAND DD MM |
O.D. MM |
LENGTH CM |
|---|---|---|---|---|---|---|---|---|
| 116320 | 2 B&S 46cm Red | 2 | 32.07 | 255 | 1.7 | 3600.32 | 11.5 | 46 |
| 116322 | 2 B&S 122cm Red | 2 | 32.07 | 255 | 1.7 | 3600.32 | 11.5 | 122 |
| 116324 | 2 B&S 183cm Red | 2 | 32.07 | 255 | 1.7 | 3600.32 | 11.5 | 183 |
| Lens Material | UV resistant enhanced impact acrylic |
| Cap Material | White plastic, chrome plated plastic, polished 316 stainless steel |
| Colour Temperature | 2700K Warm White |
| Operating Voltage | Multivolt for optimum brightness in 12 and 24 volt systems |
| Power Consumption | 0.5W ( < 0.04A@12V / < 0.02A@24V ) |
| Degree of Protection | IP67 (Completely Sealed) |
| Weight | Stainless Cap – 30g (including cable). Plastic Cap – 15g (including cable) |
