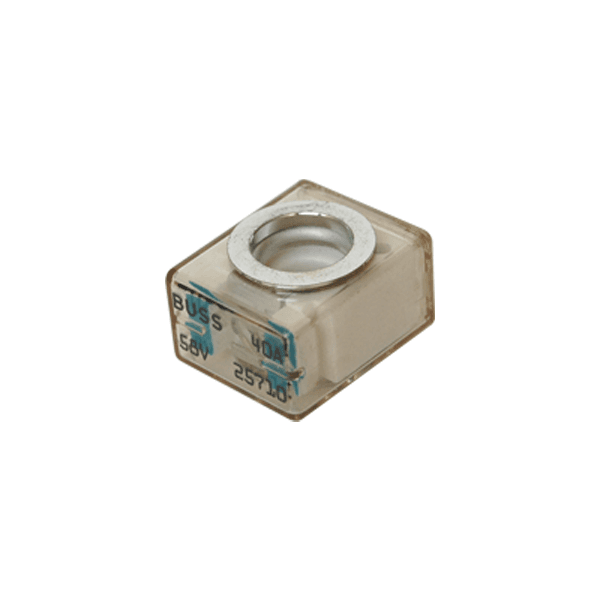

MRBF Terminal Fuse

Terminal Fuse 5175 mounts on 3/8″ (M10) battery block, battery switch or busbar terminals. It provides high current protection in tight spaces.

- +
SKU: 5176-BSS Category: Tags: ,

Space-saving ignition protected terminal fuse for 30 to 300 Amp loads. Must use with Terminal Fuse Block.

  • Requires the use of Terminal Fuse Blocks PN 5191 or PN 2151—do not mount the fuse directly to the battery terminal
  • Interrupt rating satisfies ABYC requirements for DC Main circuit protection on large battery banks
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Clear window—visual indication of blown condition
  • Color coded for each amperage

View More Marine Electrical Products

Dimension Drawing

Specifications
Amperage 40A, 50A, 80A, 100A, 125A, 150A, 175A, 200A, 250A, 300A,
Ignition Protected Yes
Maximum Voltage 58V DC
Interrupt Capacity 10000A @ 14V DC
5000A @ 32V DC
2000A @ 58V DC
Weight 0.06 lb (0.03 kg)
