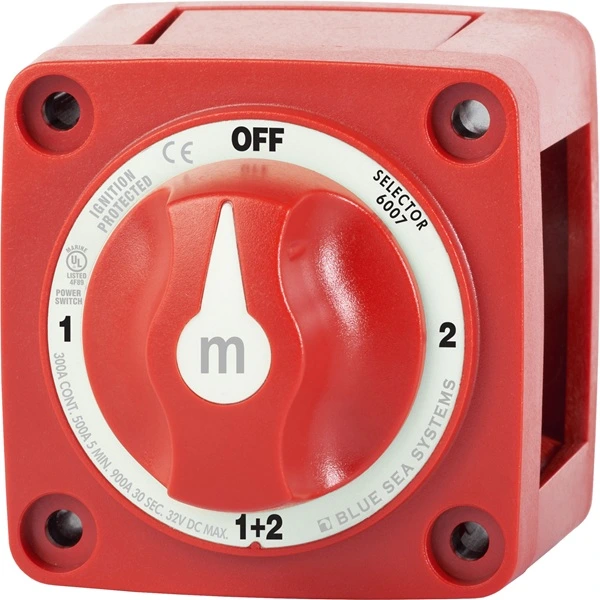

m-Series Mini Selector Battery Switch – Red

Switches a single battery to a single load group

- +
SKU: 6007-BSS Category: Tag:
Mini Selector Battery Switch

-Ignition protected—safe for installation aboard gasoline powered boats

-Case design allows surface, front panel, or rear panel mounting

-Isolating cover with snap-on sections protects rear contacts



Specifications
Switch TypeSelector 4 Position
ColorRed
Switch Positions4
Battery CombineYes
Alternator Field DisconnectNo
Maximum Voltage32V DC
Stud Size3/8″
Terminal Stud Torque120 in-lb (13.56 Nm)
Continuous Rating300A
Intermittent Rating500A (5 min)
Cranking Rating 30 sec900A
Battery Inputs2
Cable Clearance For 4/0 AWG Cables1.12in (28.45 mm)
Cable Size to Meet Ratings4/0 AWG (120mm²)
Mounting HolesAccept #10 Screw
Stud MaterialTinned Copper
Stud Torque120 in-lb (13.56 Nm)
Terminal Stud Size3/8″ – 16 (M10)
Weight0.77lb (0.35 kg)
Weight0.77lb (0.35 kg)
Installation Guide
