GPS 24xd For the NMEA 0183 Network

Name: GPS 24xd For the NMEA 0183 Network
SKU: 010-02316-00
Availability: InStock

Garmin GPS 24xd HVS (NMEA 0183) high-sensitivity GPS antenna provides position information over NMEA 0183. The GPS 24xd can be connected to Garmin chartplotter

SKU: 010-02316-00 Category: Electronics & Navigation Tag: Radar

Specs

Dimensions (D x H): 3 19/32″ x 1 15/16″ (91.6 mm x 49.5 mm)
Weight: 7.1 oz (201 g)
Cable length: 30 ft (9.14 m)
Temperature range: -22° to 176° F (-30° to 80° C)
Case material: Fully gasketed, high-impact plastic alloy; waterproof to IPX7
Compass-safe distance: .5″ (12.7 mm)
Power source input: 8-32V, unregulated
Input current: 150 mA at 12 Vdc
Position accuracy, typical marine use: < 50 cm, CEP 50%; < 1.0 meter, 88%

Description

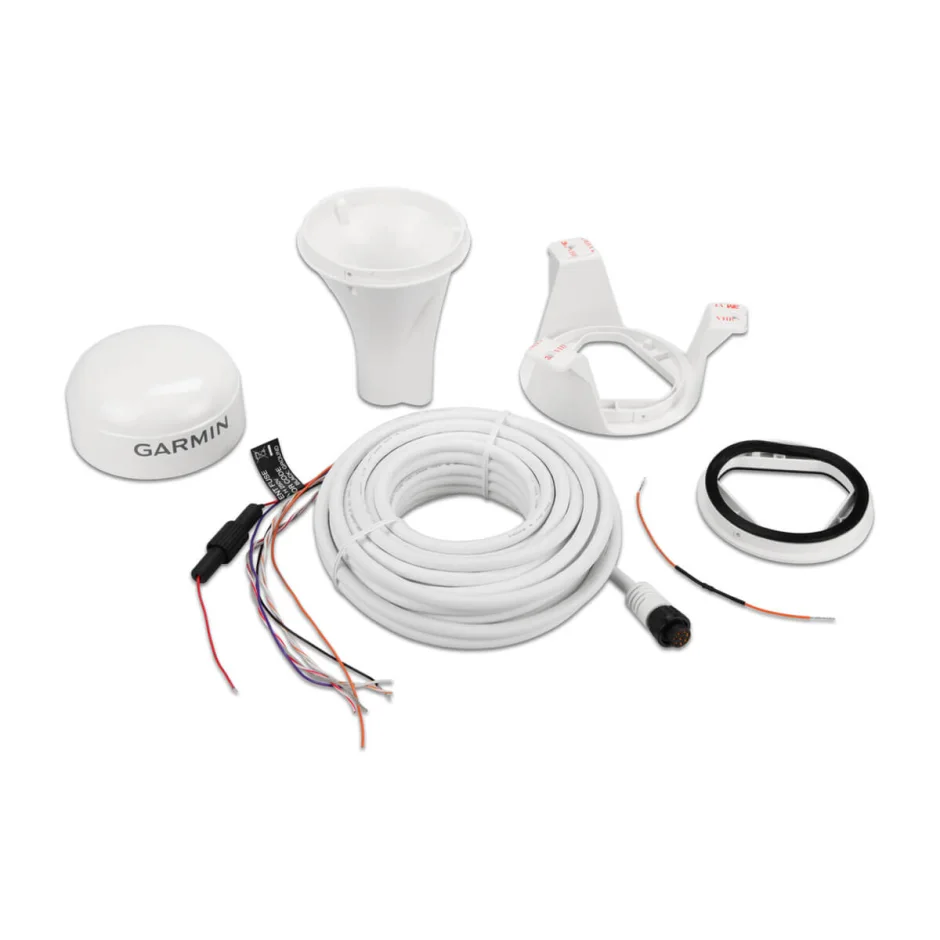

GPS 24xd Antenna/Receiver, MFG# 010-02316-00, HVS NMEA 0183 Version, provides precise location with multi-band GNSS and heading accuracy even at slow speeds. Includes pole mount, surface mount, and under-deck mount. For more Garmin Product Click Here.

Link
Garmin 24xd NMEA 0183 Network Guide
