Garmin

Echomap UHD2 Touch 62sv

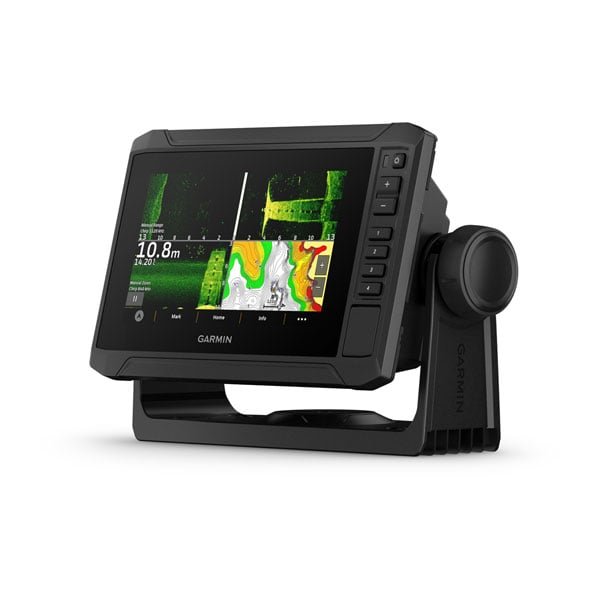

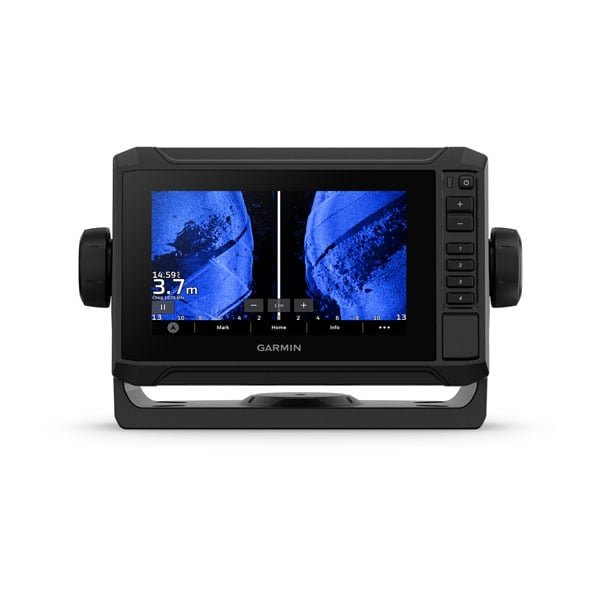

ECHOMAP UHD2 62sv, w/ GT54UHD-TM, See below your boat with Garmin traditional, ClearVü™ and SideVü™ scanning sonars with vivid color palettes. Compatible with LiveScope™ live scanning sonar

SKU: 010-02679-01 Category:

Specs

General
DIMENSION8.1” x 5.2” x 2.6” (20.6 x 13.1 x 6.7 cm)
TOUCHSCREENYes
INPUTTouchscreen with Keyed Assist
DISPLAY SIZE5.4″ x 3.1″, 6.2″ (13.8 x 7.8, 15.7 cm)
DISPLAY RESOLUTION800 x 480 pixels
DISPLAY TYPEWVGA, TN
WEIGHT1.8 lbs (0.8 kg)
WATERPROOFIPX7
MOUNTING OPTIONSBail or flush
Maps & Memory
ACCEPTS DATA CARDS1 microSD™ card; 32 GB maximum size
WAYPOINTS5,000
TRACK POINTS50,000
TRACKS50 saved tracks
NAVIGATION ROUTES100
Sensors
HAS BUILT-IN RECEIVERYes
RECEIVER10 Hz
NMEA 2000 COMPATIBLEYes
GPSYes
GLONASSYes
GALILEOYes
BEIDOUYes
SUPPORTS WAASYes
SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPSYes
Built-in Maps
BUILT-IN AUTO GUIDANCE+yes (downloadable via ActiveCaptain app)
GARMIN NAVIONICS+ INLAND & COASTALin 65sv – Canada
GARMIN NAVIONICS+ (COASTAL)in 64sv – U.S. coastal
GARMIN NAVIONICS+ (INLAND)in 63sv – U.S. lakes
TIDE TABLESin 63sv, 64sv, 65sv
Optional Map Support
GARMIN NAVIONICS+™Yes
GARMIN NAVIONICS VISION+™Yes
TOPOYes
STANDARD MAPPINGYes
GARMIN QUICKDRAW CONTOURSYes
Chartplotter Features
AISYes
DSCYes
SUPPORTS FUSION-LINK™ COMPATIBLE RADIOSYes
ACTIVECAPTAIN® COMPATIBLEYes
SAILING FEATURESYes
Sonar Features & Specifications
DISPLAYS SONARYes
POWER OUTPUT500 W
TRADITIONAL SONAR (DUAL FREQUENCY/BEAM)built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
CLEARVÜbuilt-in 260/455/800/1000/1200 kHz
SIDEVÜbuilt-in 260/455/800/1000/1200 kHz
PANOPTIX™ SONARYes
LIVESCOPEYes

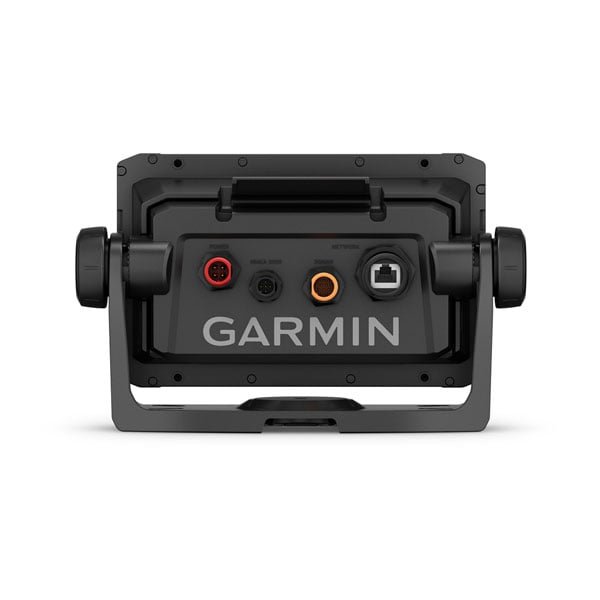

Connections
NMEA 2000 PORTS
GARMIN MARINE NETWORK PORTS1
12-PIN TRANSDUCER PORTS1
BLUETOOTH® PAIRINGYes
ANT+ (CONNECTIVITY)Yes
GARMIN WI-FI NETWORK (LOCAL CONNECTION)Yes
Electrical Features
POWER INPUT9 to 18 Vdc
TYPICAL CURRENT DRAW AT 12 VDC1.53 A
MAXIMUM CURRENT DRAW AT 12 VDC3.2 A
MAXIMUM POWER USAGE AT 10 VDC18.4W



Description

The ECHOMAP UHD2 touchscreen with keyed-assist chartplotter knows the water better than a local. Its bright, sunlight-readable display offers improved detail and clarity. See clear, sharp fish arches with Garmin traditional sonar. ClearVü™ and SideVü™ scanning sonars feature vivid color palettes for clear, high-contrast views all around your boat. ECHOMAP UHD2 also supports LiveScope™ sonar systems. Navigate the waters with built-in Garmin Navionics+™ cartography, which comes with a 1-year subscription to daily chart updates. Built-in Wi-Fi® connectivity lets you wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter. Wherever you drop your line, get improved position accuracy, particularly in areas where signals are reflected or weak, with multi-band GPS. You can also pair with the free all-in-one ActiveCaptain® app on your compatible smartphone for access to the OneChart™ feature, software updates and more. The chartplotter supports NMEA 2000® networks to connect your compatible autopilots, digital switching, music and more to view all on one screen. For more Garmin Product Click Here.
